In today’s rapidly urbanizing world, the management of impervious cover is more critical than ever. As cities expand and the built environment grows denser, impervious surfaces—those that do not allow water to infiltrate the soil—have become more prevalent. These surfaces are essential for modern infrastructure but can also lead to significant environmental challenges if not carefully managed.
This comprehensive guide delves into the concept of impervious cover, exploring its definition, environmental impact, and how architects and urban planners can mitigate its negative effects. We will also examine sustainable alternatives such as pervious paving options, the specific regulations in cities like Austin, Texas, and how architects can add value by integrating these considerations into their designs.
What is Impervious Cover?
Definition and Examples
Impervious cover refers to any surface that water cannot easily penetrate. This includes a wide range of materials used in construction and urban development, such as asphalt, concrete, brick, and stone. While these materials are crucial for creating durable roads, parking lots, sidewalks, and buildings, they disrupt the natural water cycle by preventing rainwater from soaking into the ground.
Examples of impervious cover are everywhere in urban settings:
• Roadways and Highways: Asphalt and concrete are the most common materials used for roads, which make up a significant portion of impervious surfaces in cities.
• Sidewalks and Pathways: Concrete and stone are typically used for pedestrian walkways, further contributing to impervious cover.
• Rooftops: The roofs of buildings, whether residential or commercial, are generally impervious, channeling rainwater away from the structure.
• Parking Lots: Large expanses of asphalt or concrete in parking areas prevent water from infiltrating the soil.

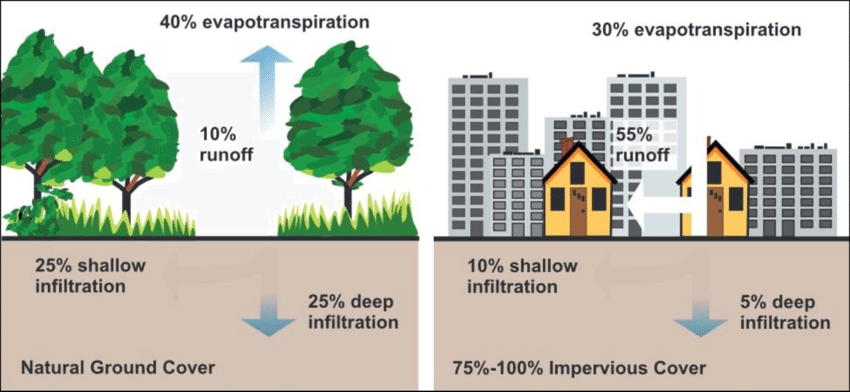

Environmental Impact of Impervious Cover
The extensive use of impervious surfaces in urban areas has profound environmental impacts. These impacts are often interconnected, leading to a cascade of environmental challenges that can affect entire ecosystems.
1. Increased Flooding
One of the most immediate and visible effects of impervious cover is the increase in flooding. When rain falls on impervious surfaces, it cannot seep into the ground. Instead, it rapidly flows across these surfaces, gathering speed and volume. This can overwhelm stormwater management systems, leading to flash floods, especially in urban areas where natural drainage has been altered or removed.
In regions with heavy rainfall, such as Austin, the risk of flooding is particularly high. Floodwaters can cause significant damage to infrastructure, homes, and businesses, leading to costly repairs and disruptions.
2. Water Pollution
As rainwater runs off impervious surfaces, it collects pollutants along the way. These pollutants can include oil and grease from vehicles, chemicals from industrial activities, fertilizers, pesticides, and trash. This contaminated runoff often flows into storm drains, rivers, lakes, and oceans without being treated, leading to water pollution. Polluted runoff can harm aquatic life, degrade water quality, and pose health risks to humans.
3. Erosion
The increased volume and speed of runoff from impervious surfaces can also lead to erosion. As water rushes over the land, it can erode soil, riverbanks, and other natural features. This erosion can destabilize landscapes, damage property, and contribute to sedimentation in waterways, which further degrades water quality and aquatic habitats.
4. Urban Heat Island Effect
Impervious surfaces, especially those made of dark materials like asphalt, absorb and retain heat from the sun. This creates what is known as the urban heat island effect, where urban areas become significantly warmer than their rural surroundings. The increased temperatures can lead to higher energy consumption for cooling, exacerbate heat-related health issues, and negatively impact local ecosystems.
Regulations and Limits: The Case of Austin, Texas
Cities around the world have recognized the environmental challenges posed by impervious cover and have implemented regulations to manage its impact. Austin, Texas, is a leading example of a city that has taken proactive steps to limit impervious cover and protect its natural resources.
Understanding Austin’s Impervious Cover Limits
Austin’s approach to managing impervious cover is rooted in its commitment to preserving the natural environment, particularly its water resources. The city’s regulations vary depending on the zoning of the area and the environmental sensitivity of the location.

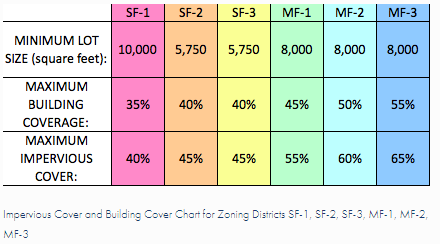

1. Residential Zones
In Austin’s single-family residential zones, impervious cover is typically limited to 45% of the lot area. This means that homeowners must design their properties in a way that leaves more than half of the land available for pervious surfaces, such as lawns, gardens, and other landscaped areas. This regulation helps to reduce runoff and encourages the use of sustainable landscaping practices.
2. Commercial Zones
In commercial zones, the limits on impervious cover are higher, reflecting the need for more extensive infrastructure. However, even in these areas, there are restrictions. Depending on the specific zoning and location, impervious cover limits can range from 70% to 95% of the lot area. These regulations are designed to balance the need for development with the protection of the environment.
3. Critical Water Quality Zones
Austin has designated certain areas as Critical Water Quality Zones (CWQZ) and Water Supply Rural (WSR) areas to protect its most sensitive environmental features, such as the Edwards Aquifer and the city’s creeks and rivers. In these zones, impervious cover limits are much stricter, often as low as 20%. Development in these areas must be carefully managed to avoid contaminating water supplies and disrupting natural ecosystems.
These regulations are enforced through the city’s development review process, which requires builders and developers to submit plans that demonstrate compliance with impervious cover limits. By controlling the amount of impervious cover, Austin aims to reduce the risk of flooding, protect water quality, and preserve the natural landscape.
Mitigating the Negative Impacts of Impervious Cover
While regulations like those in Austin are essential, architects and urban planners also have a critical role to play in mitigating the negative impacts of impervious cover. Through thoughtful design and the use of sustainable materials and technologies, it is possible to reduce runoff, improve water quality, and enhance the environmental performance of urban developments.
Sustainable Design Strategies
1. Green Roofs
Green roofs are an increasingly popular strategy for reducing impervious cover in urban areas. A green roof is a vegetative layer grown on a rooftop that helps to absorb rainwater, provide insulation, and reduce the urban heat island effect. There are two main types of green roofs:
• Extensive Green Roofs: These are lighter and less complex, typically featuring a thin layer of soil and low-maintenance vegetation such as grasses and sedums. Extensive green roofs are suitable for a wide range of buildings, including residential homes and commercial properties.
• Intensive Green Roofs: These are more complex, with deeper soil layers that can support a wider variety of plants, including shrubs and small trees. Intensive green roofs require more maintenance and are typically used in larger commercial or public buildings.
Green roofs not only reduce the amount of impervious surface area but also provide additional benefits, such as improved building insulation, reduced energy costs, and enhanced biodiversity in urban areas.
2. Permeable Pavements
Permeable pavements are designed to allow water to pass through the surface, reducing runoff and promoting groundwater recharge. These pavements are made from materials that have void spaces, enabling water to flow through the surface and into the soil below. Permeable pavements come in several forms, each with its own advantages and applications, which we will explore in detail in the next section.
3. Rain Gardens
Rain gardens are shallow, landscaped depressions that are designed to capture and absorb runoff from impervious surfaces such as roofs, driveways, and sidewalks. Rain gardens are planted with native vegetation that can tolerate both wet and dry conditions. As water collects in the rain garden, it slowly infiltrates the soil, reducing the amount of runoff that enters storm drains and improving water quality by filtering out pollutants.
Rain gardens can be incorporated into a wide range of settings, from residential yards to commercial developments. They are particularly effective in areas with compacted soils or where space is limited.
4. Bioswales
Bioswales are similar to rain gardens but are typically larger and designed to handle more significant volumes of runoff. They are often used along roadways, parking lots, and other large impervious surfaces to slow down water flow, allowing it to infiltrate the soil and filter out pollutants. Bioswales are usually planted with native grasses and other vegetation that helps to stabilize the soil and provide habitat for wildlife.
Bioswales can be an attractive and functional addition to urban landscapes, providing both environmental benefits and aesthetic appeal.
Pervious Paving Options
Pervious paving is a key strategy for managing runoff and reducing the environmental impact of impervious surfaces. These paving systems allow water to seep through the surface and into the ground, rather than running off into storm drains or waterways. There are several types of pervious paving options, each with specific advantages, considerations, and ideal use cases.
1. Permeable Concrete
Permeable concrete, also known as pervious or porous concrete, is made with a mix of coarse aggregate, cement, and water, but without the fine particles found in traditional concrete. This creates a network of void spaces that allows water to flow through the material and into the ground below.
Advantages:
• High Strength and Durability: Permeable concrete can withstand the same loads as traditional concrete, making it suitable for driveways, parking lots, and other areas with vehicular traffic.
• Reduces Runoff and Recharges Groundwater: By allowing water to infiltrate the ground, permeable concrete helps to recharge groundwater and reduce the volume of stormwater runoff. This is particularly beneficial in urban areas where natural infiltration is limited.
Considerations:
• Installation Requirements: Proper installation is critical for the effectiveness of permeable concrete. The sub-base must be well-drained, and the concrete must be placed and cured correctly to maintain permeability. Poor installation can lead to clogging and reduced performance.
• Maintenance Needs: Permeable concrete requires regular maintenance to prevent clogging of the void spaces. This can include vacuuming or power washing to remove debris and sediment.
2. Porous Asphalt
Porous asphalt is similar to traditional asphalt but with a different aggregate mix that includes fewer fine particles. This allows water to pass through the surface and into the underlying layers. Porous asphalt is commonly used for parking lots, pathways, and low-traffic roads.
Advantages:
• Cost-Effective: Porous asphalt is often less expensive than other pervious paving options, making it a cost-effective choice for large areas like parking lots.
• Familiarity and Availability: Asphalt is a widely used material, and porous asphalt can be produced and installed by most paving contractors, making it a readily available option.
• Suitable for High-Traffic Areas: Porous asphalt can be used in areas with moderate to high traffic, provided that it is properly designed and installed.
Considerations:
• Sub-Base Preparation: Like permeable concrete, porous asphalt requires a well-drained sub-base to function effectively. The underlying layers must be designed to allow water to infiltrate into the soil.
• Maintenance and Longevity: Porous asphalt can become clogged over time, reducing its permeability. Regular maintenance, such as sweeping and vacuuming, is necessary to maintain its effectiveness. Additionally, the lifespan of porous asphalt may be shorter than traditional asphalt, especially in regions with freeze-thaw cycles.
3. Interlocking Pavers
Interlocking pavers are individual units made from concrete, stone, or brick that fit together with small gaps between them. These gaps are filled with sand or gravel, allowing water to infiltrate through the joints and into the ground. Interlocking pavers are popular for driveways, patios, walkways, and plazas.
Advantages:
• Aesthetic Flexibility: Interlocking pavers come in a wide range of colors, shapes, and patterns, allowing for creative and visually appealing designs. This makes them a popular choice for residential and commercial projects where aesthetics are a priority.
• Ease of Repair: If individual pavers become damaged, they can be easily removed and replaced without disturbing the surrounding area. This makes maintenance more straightforward compared to monolithic paving materials like concrete or asphalt.
• Permeability: The gaps between the pavers allow water to infiltrate into the ground, reducing runoff and promoting groundwater recharge.
Considerations:
• Proper Installation: The effectiveness of interlocking pavers depends on correct installation, including proper base preparation and ensuring that the pavers are level and secure. Poor installation can lead to shifting, settling, or uneven surfaces.
• Gaps Maintenance: The gaps between pavers can become clogged with dirt, debris, or organic matter over time, reducing permeability. Regular maintenance, such as sweeping and re-filling the gaps with sand or gravel, is necessary to maintain performance.
4. Gravel and Grass Pavers
Gravel and grass pavers are grid systems that can be filled with gravel or soil and grass, creating a permeable surface that blends with the natural environment. Gravel pavers are typically used for driveways, parking lots, and pathways, while grass pavers are often used in areas where a green, natural appearance is desired, such as overflow parking areas or emergency access lanes.
Advantages:
• High Permeability: Both gravel and grass pavers offer excellent permeability, allowing water to infiltrate quickly into the ground. This makes them effective at reducing runoff and managing stormwater.
• Natural Aesthetics: Grass pavers, in particular, can create a seamless blend between built environments and natural landscapes, making them ideal for areas where maintaining green space is important.
• Durability: Gravel pavers can withstand heavy loads, making them suitable for vehicular traffic, while grass pavers provide a permeable surface that can support occasional traffic without damaging the grass.
Considerations:
• Traffic Limitations: While gravel pavers can handle regular vehicular traffic, grass pavers are best suited for areas with light or infrequent traffic. Heavy or continuous traffic can damage the grass and reduce the effectiveness of the system.
• Maintenance Requirements: Grass pavers require regular maintenance to keep the grass healthy, including mowing, watering, and reseeding as needed. Gravel pavers may need periodic replenishment of the gravel to maintain the surface.
Managing Runoff with Pervious Paving
The implementation of pervious paving systems plays a crucial role in managing stormwater runoff and mitigating the negative impacts of impervious surfaces. When designed and installed correctly, pervious paving can help to reduce flooding, improve water quality, and enhance the sustainability of urban environments.
Design Considerations for Pervious Paving
1. Site Analysis
Before selecting and installing a pervious paving system, it is essential to conduct a thorough site analysis. This includes evaluating the soil type, drainage patterns, and water table levels to determine the most suitable pervious paving option. Soils with high infiltration rates, such as sandy or loamy soils, are ideal for pervious paving, while clay soils may require additional design considerations, such as deeper sub-bases or underdrains, to ensure proper drainage.
2. Integration with Other Systems
Pervious paving should be part of a comprehensive stormwater management strategy that includes other sustainable design elements, such as rain gardens, bioswales, and rainwater harvesting systems. By integrating pervious paving with these systems, architects and planners can create a holistic approach to managing runoff and reducing the environmental impact of development.
3. Maintenance Planning
Regular maintenance is critical to the long-term effectiveness of pervious paving systems. This includes routine inspections, cleaning to remove debris and prevent clogging, and repairs as needed. Developing a maintenance plan at the design stage ensures that the pervious paving system will continue to function as intended over its lifespan.
4. Cost-Benefit Analysis
While pervious paving systems can be more expensive to install than traditional impervious surfaces, they offer long-term benefits that can offset the initial costs. These benefits include reduced stormwater management fees, lower flood risk, and enhanced property values. A cost-benefit analysis can help determine the most cost-effective approach for a particular project.
Architectural Value: Sustainability and Impervious Cover
Architects are in a unique position to add value to projects by incorporating sustainable design practices that address the challenges posed by impervious cover. By prioritizing sustainability, architects can create buildings and landscapes that not only comply with regulatory requirements but also contribute to the overall health and resilience of the environment.
The Role of Architects in Sustainable Design
1. Innovative Solutions
Architects can lead the way in designing innovative solutions that reduce impervious cover and manage stormwater effectively. This includes the use of green roofs, pervious paving, rainwater harvesting systems, and landscape designs that mimic natural hydrology. By integrating these elements into the design process, architects can create buildings that are both functional and environmentally responsible.
2. Environmental Stewardship
Sustainable design is not just about meeting regulations; it is about being a steward of the environment. Architects have a responsibility to design buildings that minimize environmental impact, conserve natural resources, and promote the well-being of both people and ecosystems. By reducing impervious cover and implementing sustainable practices, architects can help protect water quality, reduce greenhouse gas emissions, and create healthier, more livable communities.
3. Client Education
Architects also play a crucial role in educating clients about the benefits of sustainable design. By explaining the long-term advantages of reducing impervious cover, such as lower maintenance costs, enhanced property values, and improved environmental performance, architects can encourage clients to invest in sustainable practices. This education can help shift the market toward more sustainable building practices and create demand for environmentally responsible development.
Case Studies: Successful Implementation of Pervious Paving
To illustrate the effectiveness of pervious paving and sustainable design, it is helpful to examine case studies where these strategies have been successfully implemented. These examples demonstrate how thoughtful design can achieve both aesthetic and environmental goals, providing valuable lessons for future projects.
Case Study 1: Urban Park with Pervious Pavers
In [City], an urban park was renovated to include pervious pavers throughout its pathways and plazas. The park’s designers chose interlocking pavers for their durability, permeability, and aesthetic appeal. The pavers were installed over a well-drained sub-base, allowing rainwater to infiltrate into the ground and reducing the need for traditional stormwater management systems.
The project not only improved drainage and reduced flooding in the surrounding neighborhood but also created a more inviting and sustainable public space. The use of pervious pavers helped to enhance the park’s natural beauty while providing a functional solution to stormwater management.
Case Study 2: Residential Development in Austin
A residential development in Austin faced challenges related to impervious cover limits and stormwater management. To address these challenges, the developers incorporated a variety of pervious paving options, including gravel driveways, grass pavers in common areas, and permeable concrete for walkways. These pervious surfaces were integrated with rain gardens and bioswales to manage runoff and protect water quality.
The development’s design not only met Austin’s strict impervious cover regulations but also provided homeowners with low-maintenance, eco-friendly landscaping. The use of pervious paving and sustainable landscaping practices helped to create a community that is both environmentally responsible and aesthetically pleasing.
The development’s commitment to sustainability also extended to its educational outreach. The developers worked closely with architects and landscape designers to provide homeowners with resources and guidance on maintaining their properties in an eco-friendly manner. This included information on the benefits of pervious paving, rainwater harvesting, and native plant landscaping. As a result, the community not only complied with Austin’s regulations but also became a model for sustainable residential design in the region.
Case Study 3: Commercial Complex with Green Infrastructure
In another example, a commercial complex in [City] integrated green infrastructure to manage the environmental impact of its large footprint. The project included permeable asphalt in parking areas, extensive green roofs on multiple buildings, and bioswales along the perimeter. These features were designed to handle the significant stormwater runoff associated with commercial developments.
The project’s architects worked closely with environmental engineers to ensure that the permeable surfaces and green infrastructure were effectively integrated into the site’s overall stormwater management plan. The green roofs provided additional benefits, such as reducing the buildings’ energy consumption by improving insulation and mitigating the urban heat island effect.
Over time, the complex has demonstrated significant reductions in stormwater runoff, lower energy costs, and enhanced biodiversity within the urban setting. The success of this project has set a precedent for future commercial developments, showing that it is possible to balance large-scale development with environmental stewardship.
Strategies for Architects: Integrating Pervious Paving and Sustainable Design
For architects looking to incorporate pervious paving and sustainable design strategies into their projects, there are several key considerations and best practices to keep in mind:
1. Site-Specific Design
Every project is unique, and the choice of pervious paving options and other sustainable design elements should be tailored to the specific site conditions. Architects should conduct a thorough site analysis to understand the local soil conditions, climate, and hydrology. This analysis will inform the selection of appropriate materials and design strategies that will be most effective in managing runoff and reducing impervious cover.
2. Collaboration with Experts
Successful implementation of sustainable design often requires collaboration with a range of experts, including civil engineers, landscape architects, and environmental consultants. By working closely with these professionals, architects can ensure that their designs are not only aesthetically pleasing but also functionally effective in managing stormwater and enhancing environmental performance.
3. Education and Advocacy
Architects have a unique opportunity to educate clients and the broader community about the benefits of sustainable design. By advocating for the use of pervious paving, green roofs, and other sustainable strategies, architects can help to shift market demand toward more environmentally responsible practices. This advocacy can be particularly powerful when combined with data and case studies that demonstrate the long-term cost savings and environmental benefits of sustainable design.
4. Ongoing Research and Innovation
The field of sustainable design is constantly evolving, with new materials, technologies, and techniques being developed. Architects should stay informed about the latest research and innovations in pervious paving and green infrastructure. By incorporating cutting-edge solutions into their designs, architects can stay at the forefront of sustainable architecture and continue to push the boundaries of what is possible.
Conclusion: The Future of Impervious Cover and Sustainable Architecture
As cities continue to grow and urbanize, the management of impervious cover will remain a critical issue for architects, planners, and policymakers. The environmental challenges posed by impervious surfaces are significant, but they are not insurmountable. Through thoughtful design, innovative materials, and a commitment to sustainability, architects can play a crucial role in mitigating the negative impacts of impervious cover and creating more resilient, sustainable urban environments.
The integration of pervious paving options, green roofs, and other sustainable strategies offers a path forward for reducing runoff, improving water quality, and enhancing the livability of our cities. By prioritizing these practices, architects can not only meet regulatory requirements but also contribute to a healthier, more sustainable future for all.
In conclusion, managing impervious cover is not just about compliance with local regulations; it’s about taking responsibility for the long-term health of our environment. Architects have the power to lead this charge, designing buildings and landscapes that are not only functional and beautiful but also in harmony with the natural world. As we look to the future, the continued evolution of sustainable design will be key to addressing the environmental challenges of our time and building a more sustainable, resilient world.
Credit: U.S. Environmental Protection Agency
City of Austin Limitations for Development
The total permitted impervious cover in the City of Austin is generally governed with 2 regulations:
examining the zoning ordinance; and
watershed ordinance
Click to source : https://library.municode.com/tx/austin/codes/code_of_ordinances?nodeId=TIT25LADE_CH25-2ZO_SUBCHAPTER_FREDECOST_ART1GEPR#TOPTITLE
Article Source:
https://library.municode.com/tx/austin/codes/environmental_criteria_manual?nodeId=S1WAQUMA_1.8.0IMCOCACR_1.8.1CA
https://wginc.com/the-city-of-austin-impervious-cover-limits-for-mixed-use-buildings/
https://digsatx.com/blog/2017/10/3/imperviousaustin
https://library.municode.com/tx/austin/codes/code_of_ordinances?nodeId=TIT25LADE_CH25-2ZO_SUBCHAPTER_FREDECOST_ART1GEPR#TOPTITLE
